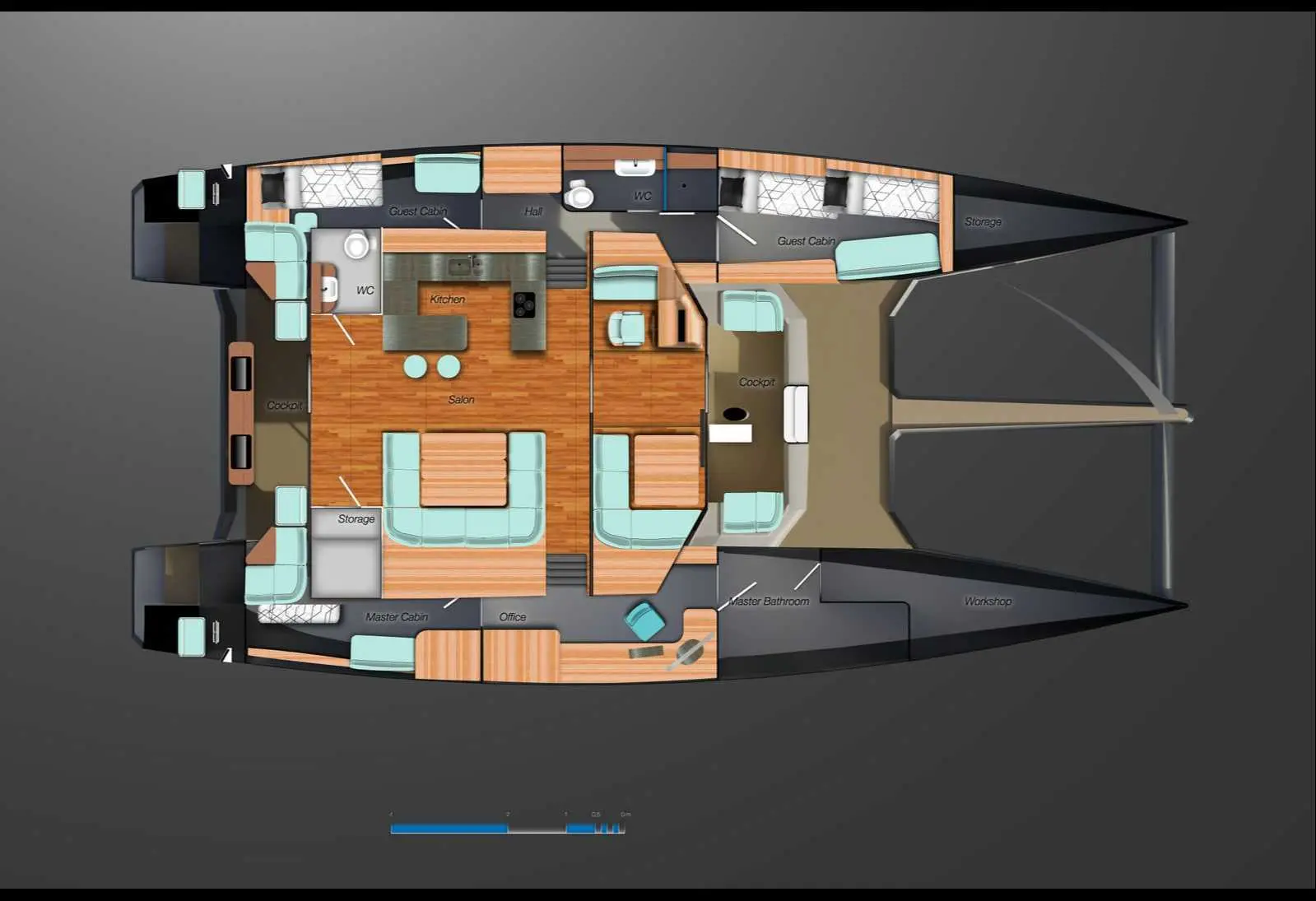

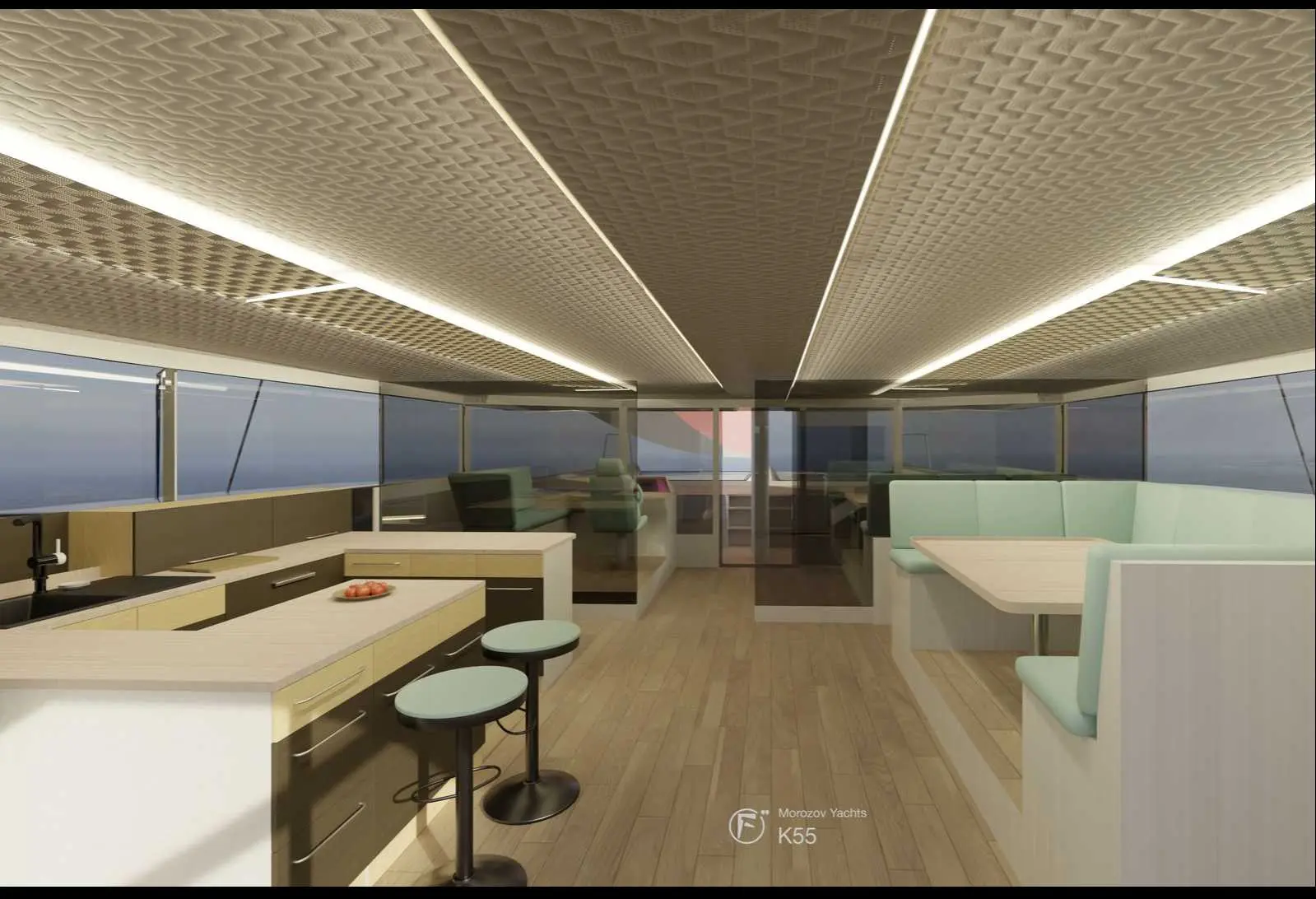

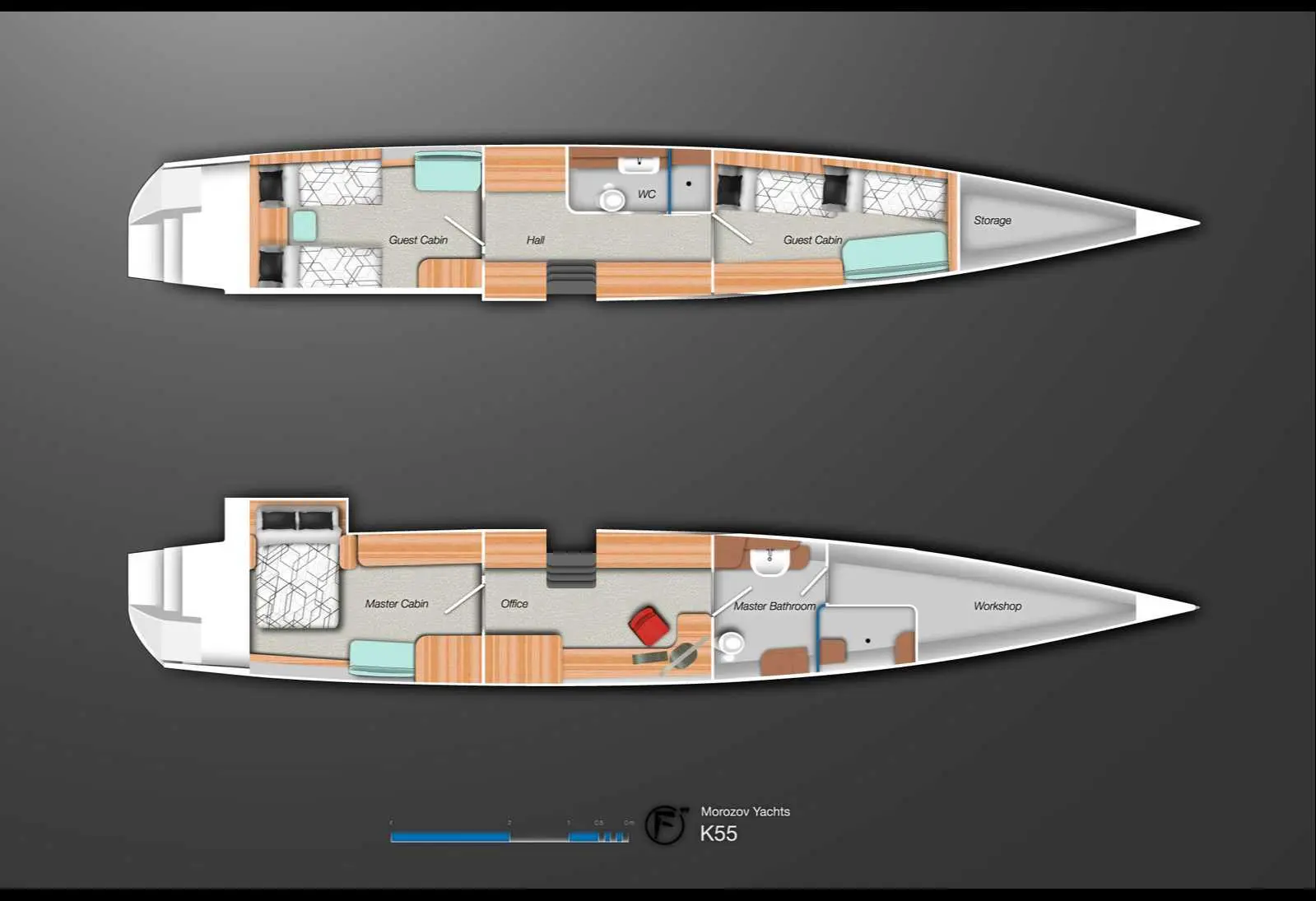

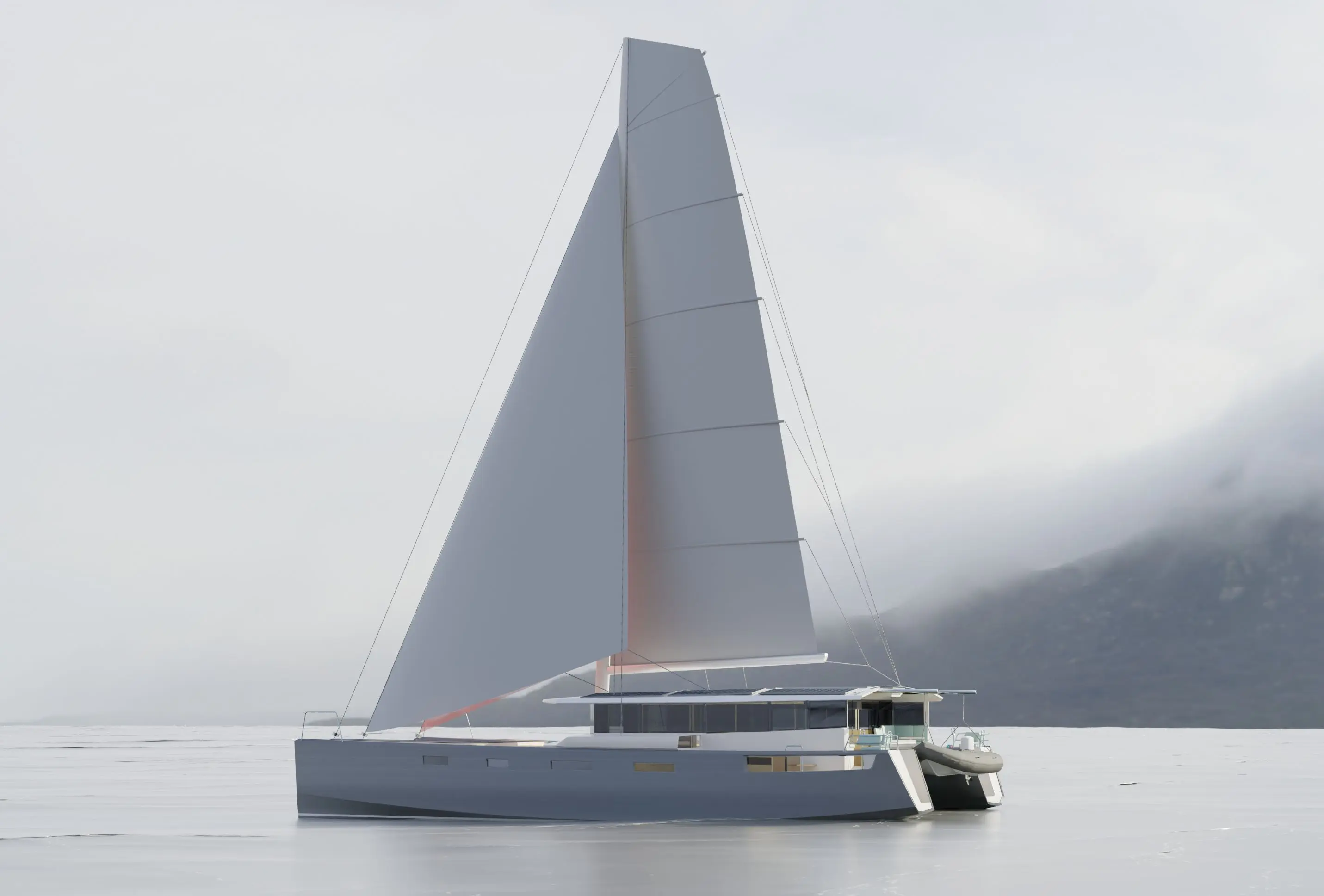

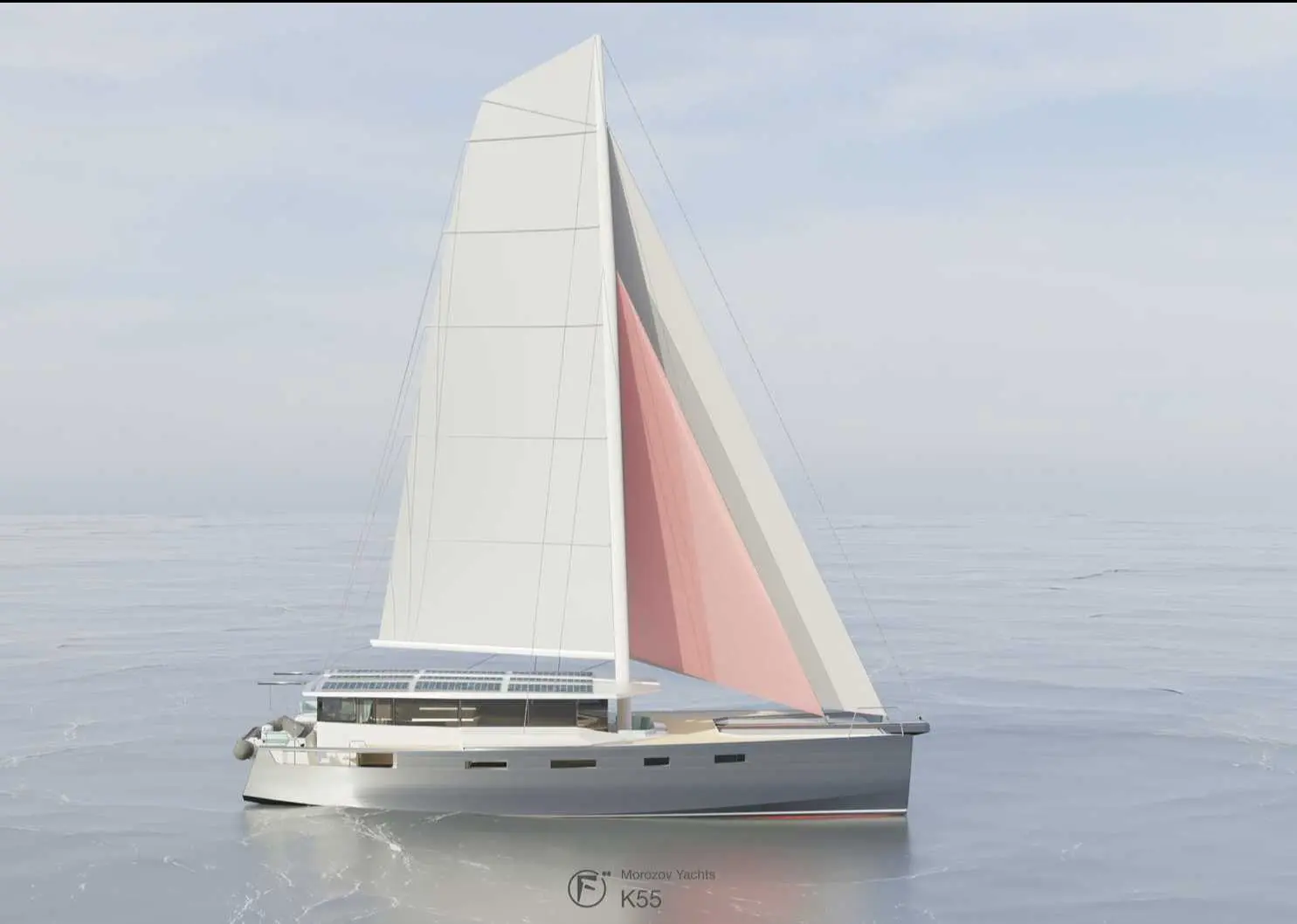

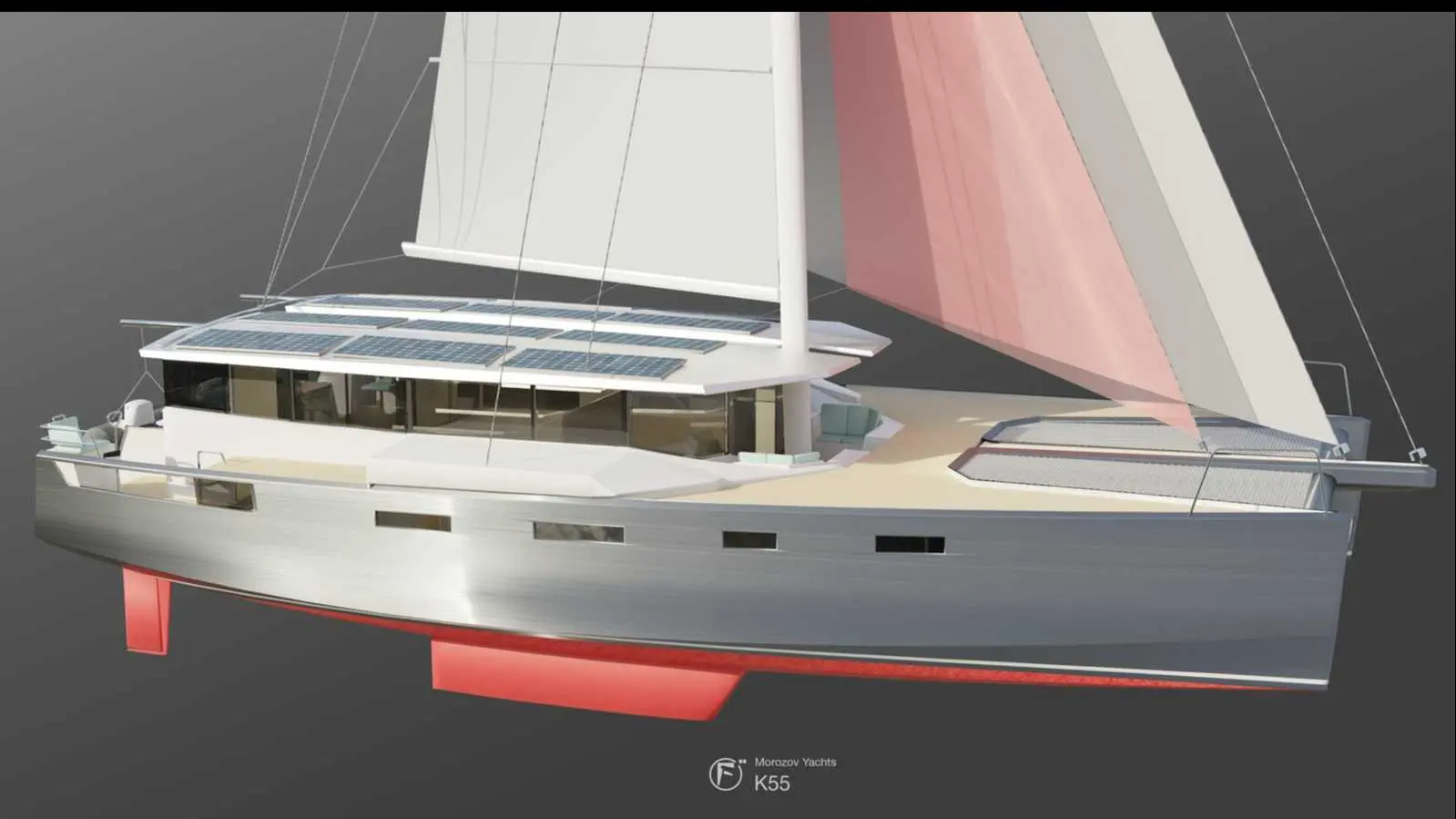

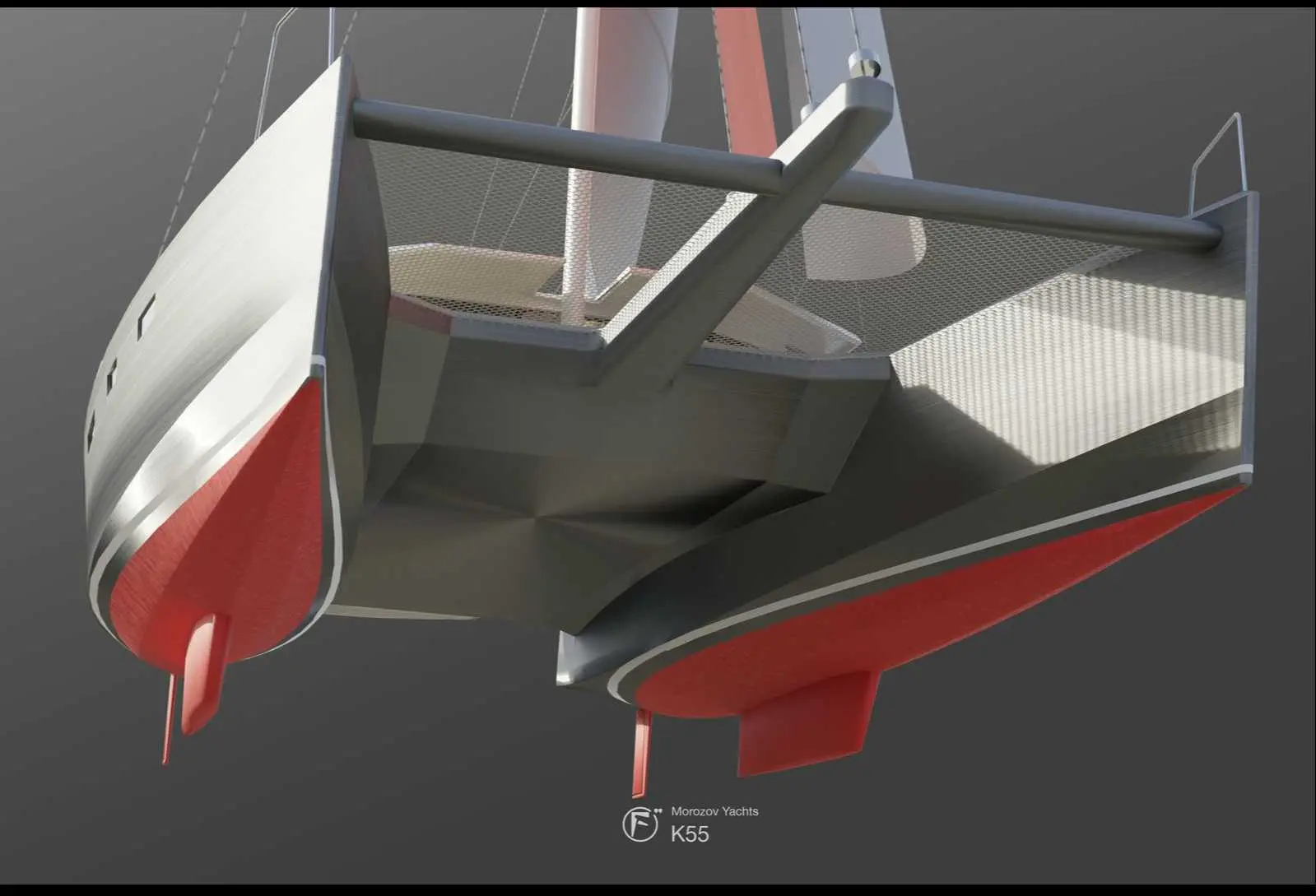

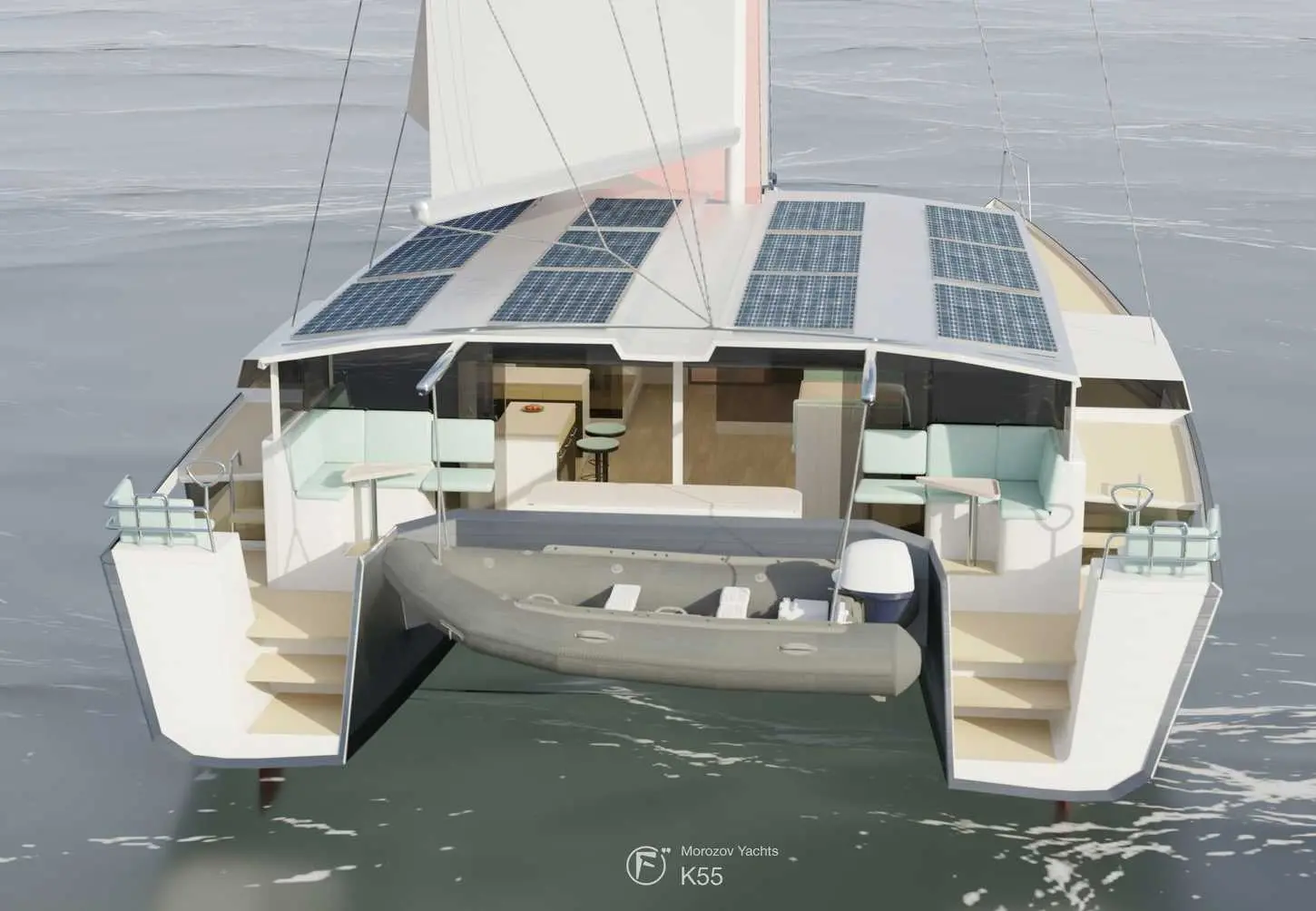

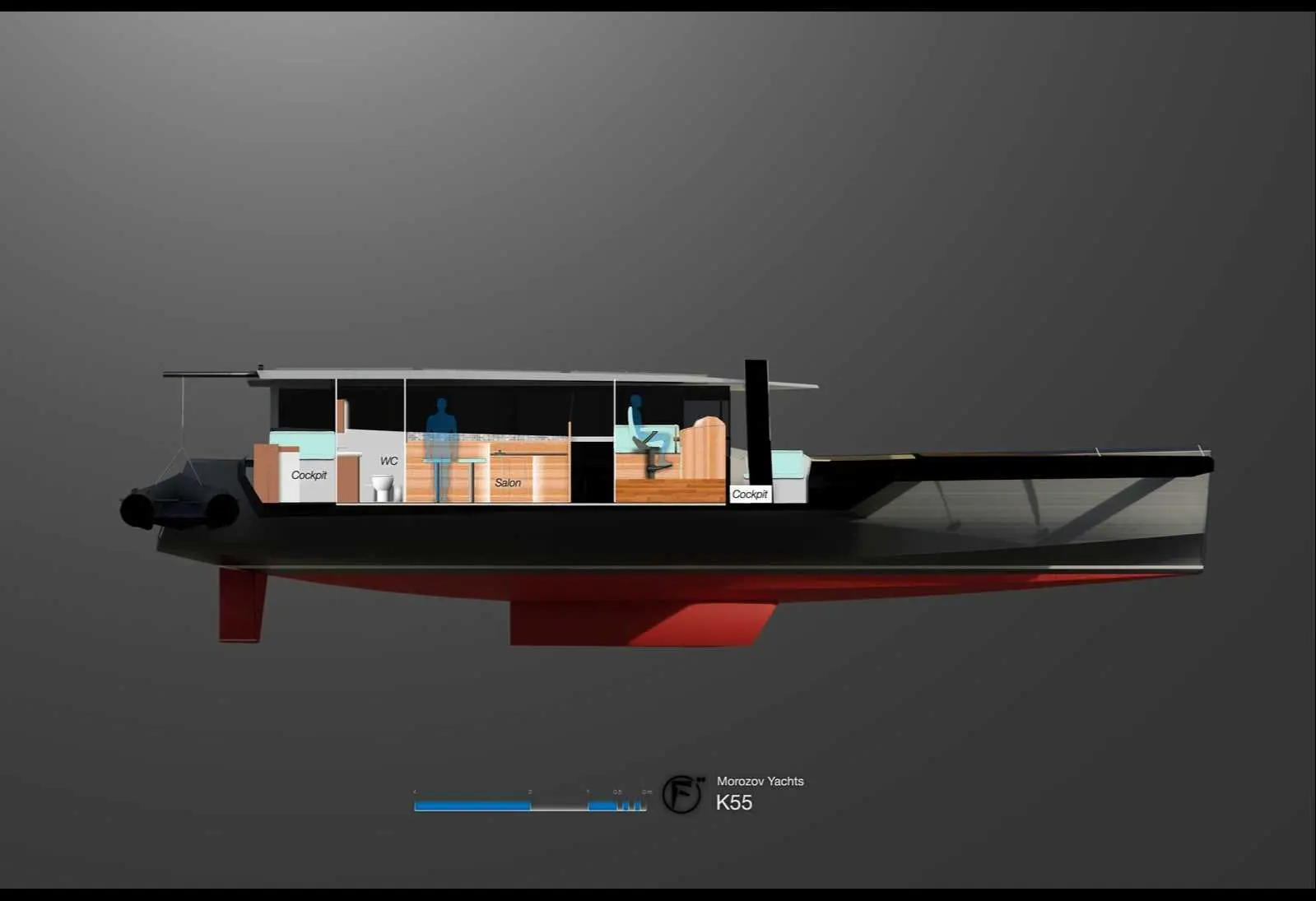

Motorsailing catamaran with an aluminum alloy hull for expedition voyages in high latitudes with a small crew. Reinforced hull with the possibility of drying in low tide areas, moderate draft and enhanced protection of the propeller and rudder, 4 watertight bulkheads in each hull. Fully enclosed deckhouse with internal control post. External helm stations only for maneuvers in port and under sail. Stern deck (cockpit) with side wind protection and soft, removable closing from the stern, to increase the isolated and protected volume when anchoraged. The layout and capacity is designed for a permanent crew of 3 people (married couple + 1 person) with the possibility of receiving additional guests 2-4 people. Workshop room in the hull and office workplace in the cabin. Interior decoration in style, using modern practical materials to facilitate maintenance and cleaning. Large reserves of fuel and water for great autonomy, liquid heating system designed for continuous operation for a long time.
Simplified sailing rig for one person control, the main use of sails in motorsailing mode and with fair winds. New type of rigging and junnk sheet system. Yanmar engines 2 x 150 hp with shaft, diesel electric system can be installed as an option.

Length
Beam
Draft
Displacement
Sail area
Fuel
Water
Black water
Berths
Engine
Category RCD CE
Concept
Visualisation
Naval architect
Builder

Generator 1 - 10 kwt
Generator 2 - 5 kwt
PMS epectric power management
Hydraulic anchor winch Lewmar
Electric sheet and halyard winches Selden
Hydraulic steering and autopilot
Watermaker 100 l/h
Fuel polishing system
Watre filtering system
Liquid heating system Kabola
Aircondition system hot/cold
Inverter 3 kwt
Charger 50A
Li-Fe batteries 1000 ah

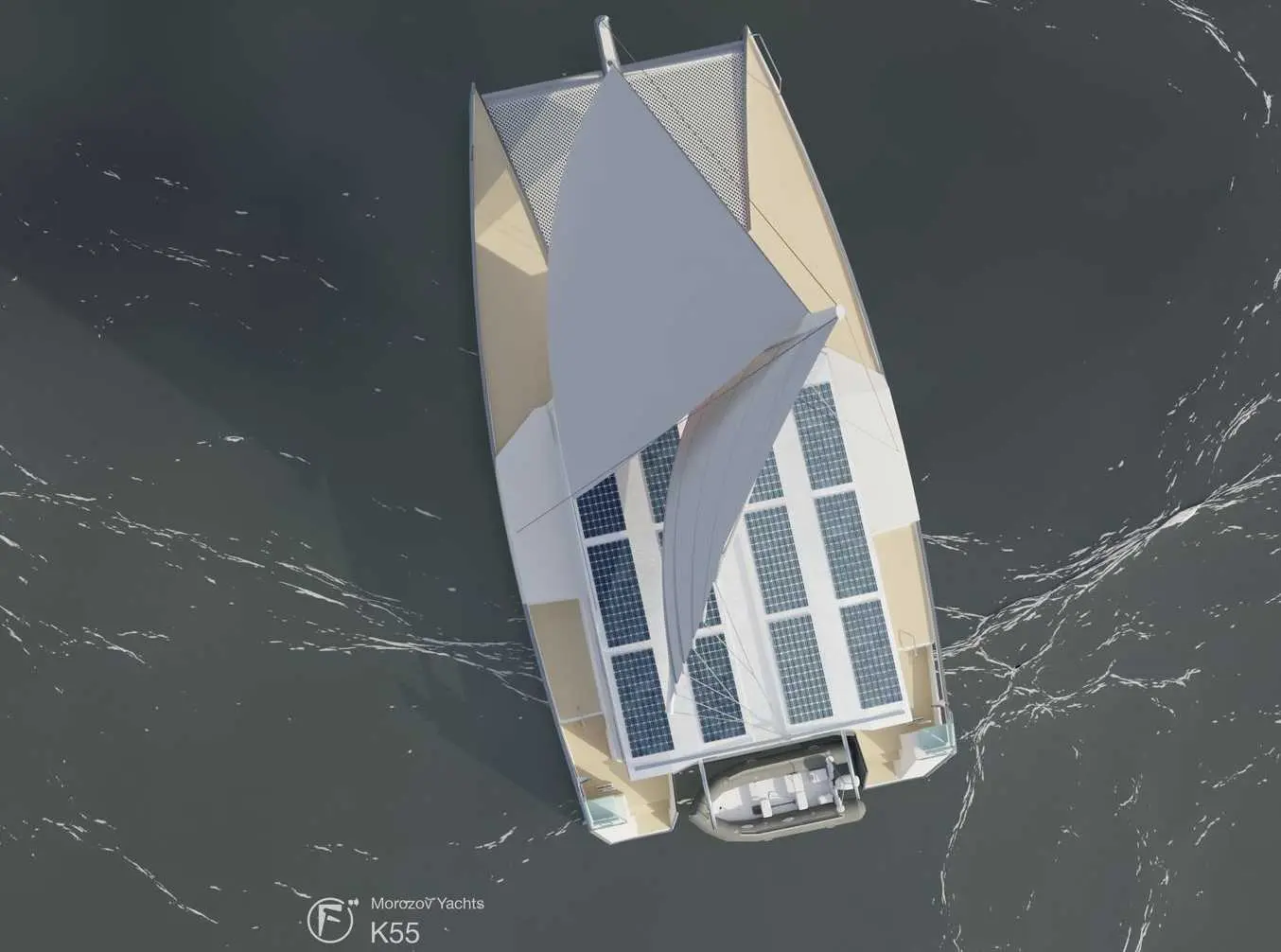

Solar panels 2000 w
System of corrosion control
B&G electronics
Icom VHF radio
AIS, Navtex
Refrigerator, freezer
Washing and dishwashing machines
Induction cooker
Dinghy with aluminium bottorm + outboard 20 hp
Diving compressor + cylinders

Concept

Features

16.7 m
5.00 m
1.50 m
18000 kg
150 m2
2000 l
1000 l
100 l
6 + 2 person
2 х Yanmar 150 hp
"A" Ocean
Alexander Morozov
Igor Dudnikiv
TBA
Morozov Yachts-TBA

K55 expedition catamaran
